Gladiator 2.0
ELECTRIC FAT-TIRE FUN
Frame Fit
28 MPH TOP SPEED
up to 40 MILE RANGE
48V 840WH BATTERY
WEIGHS 77.1 LBS
YOUR NEW SUV

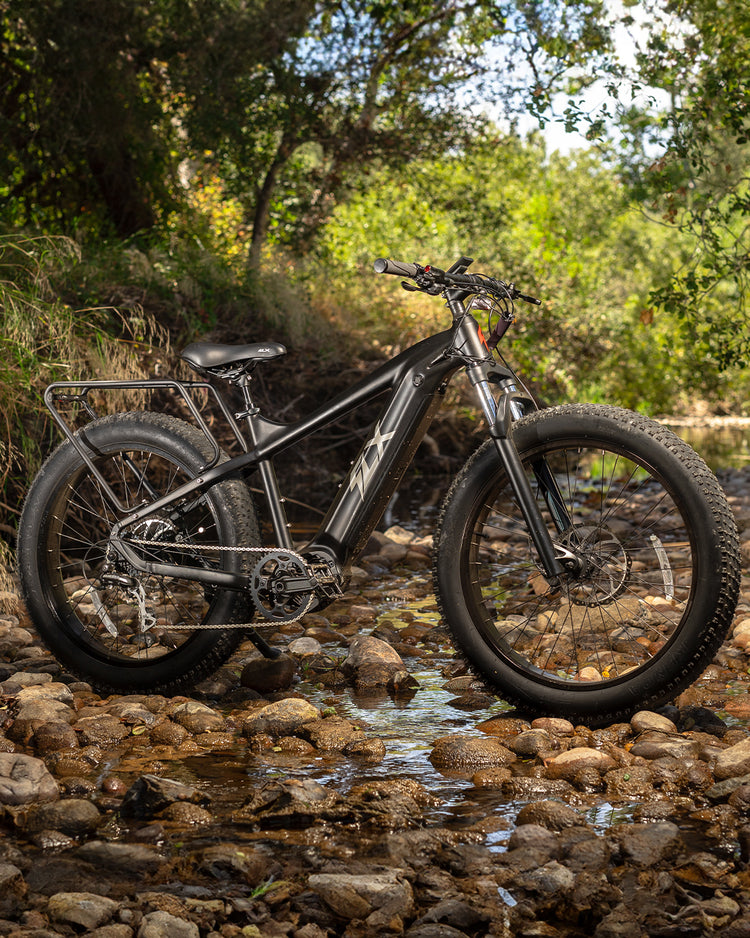

This Gladiator electric fat bike is ready for anything you can throw at it. From sand to snow, pavement to muddy off-road trails - the options are endless. Ride without range anxiety with a huge integrated 840Wh battery providing plenty of power. The extra-wide 4" fat tires and powerful 500W mid-drive motor ensure no terrain will ever stand in your way.
TECH SPECS
| Battery | 48V 17.5AH Samsung Lithium Ion Cells |
|---|---|
| Range | 20-40 Miles |
| Charge Time | 4-5 Hours |
| Motor | 500W Bafang Mid-Drive Motor |
| Speed | 28+ MPH |
| LCD Display | DPC-18 Full Color Display |
| Display Features | Speed Display, Range, Odometer |
| Pedal Assist | Torque Sensor |
Components
| Drivetrain | Shimano Deore 8-Speed Derailleur w/ M600 Triggers |
|---|---|
| Crankset | 170 mm Prowheel |
| Pedals | C246DU Wellgo |
| Brakes | 203 mm Tektik Hydraulic Disc |
| Grips | Black FLX Branded |
| Saddle | Velo FLX Branded |
| Seat Post Collar | 31.6 mm Aluminum Quick Release |
| Seat Post | 285 mm / 31.6 mm (Length / Diameter) |
| Wheels | Kenda Juggernaut Fat Tire 4in |
| Spokes | 12 / 13 Gauge (Front / Rear) |
| Tires | 26 in x 4 in Kenda (Presta Valve) |
General
| Total Weight | 77.1 lb (15.84 kg) |
|---|---|
| Battery Weight | 10.5 lb (1.13 kg) |
| Rated Weight Capacity | 275 lb (124.74 kg) |
| Frame Material | 6061 Aircraft Grade Aluminum |
| Accessory Mounts | Seat Tube, Bottle Cage, Rear Rack |
| Walk Assist | Single Press |
| Customizable | Countless Accessories |
Geometry & Fit
| A. Seat Tube Length | 18" |
|---|---|
| B. Standover Height | 32.5 in |
| C. Reach | 450 mm |
| D. Head Tube Length | 110 mm |
| E. Head Tube Angle | 67 degrees |
| F. Seat Tube Angle | 73.5 degrees |
| G. Wheelbase | 1202 mm |
| H. Chainstay Length | 450 mm |
| I. Bottom Bracket Height |
305 mm |
| J. Seat Stay Length |
457 mm |
FAQ
You can Download and Bookmark the Gladiator 2.0 User Manual here.
Your Gladiator 2.0 will arrive mostly assembled. The pedals, front tire, seat and handlebars need to be installed. Kickstand is pre-installed.
Not so sure? When in doubt we recommended contacting your local bike mechanic for help.
Unfortunately, damages resulting from improper assembly are not covered under warranty.
Whether you're trail riding, commuting, grocery getting or anything in between, this package will allow you to get the most out of your Gladiator.
Kit includes:
- Cargo Rack
- Front and Rear Fenders
- SR Suntour NCX suspension Seatpost (5'7" Min. Height Required)
- Comfort Seat
- Smartphone Mount
- Integrated Headlight and Taillight
In Stock bikes ship on our standard ship 5-10day ship schedule. Exceptions apply.
ABOUT
This Gladiator electric fat bike is ready for anything you can throw at it. From sand to snow, pavement to muddy off-road trails - the options are endless. Ride without range anxiety with a huge integrated 840Wh battery providing plenty of power. The extra-wide 4" fat tires and powerful 500W mid-drive motor ensure no terrain will ever stand in your way.
