The F5 Trail at a Glance.

Range, est.

50+mi

50+ mi depending on terrain & pedal-assist level

Top speed

28+mph

750W peak / 500W rated Bafang M600 mid-drive

Charge time

6hrs

48V 17.5AH Samsung lithium-ion cells

Total weight

61lb

Cross-country suspension fork, gravel ready

How far will a charge take you?Estimates scaled from the 48V 17.5AH (840 Wh) battery — published range is 50+ mi~50 mi est.
1 miCoffee loop
11 miHalf gravel route
29 miFull gravel route
50 miMax, one charge
50+ miRange, est.
28+ mphTop speed
6 hrsCharge time
61 lbTotal weight
Superhuman Bikes

FEATURE 01 / 06

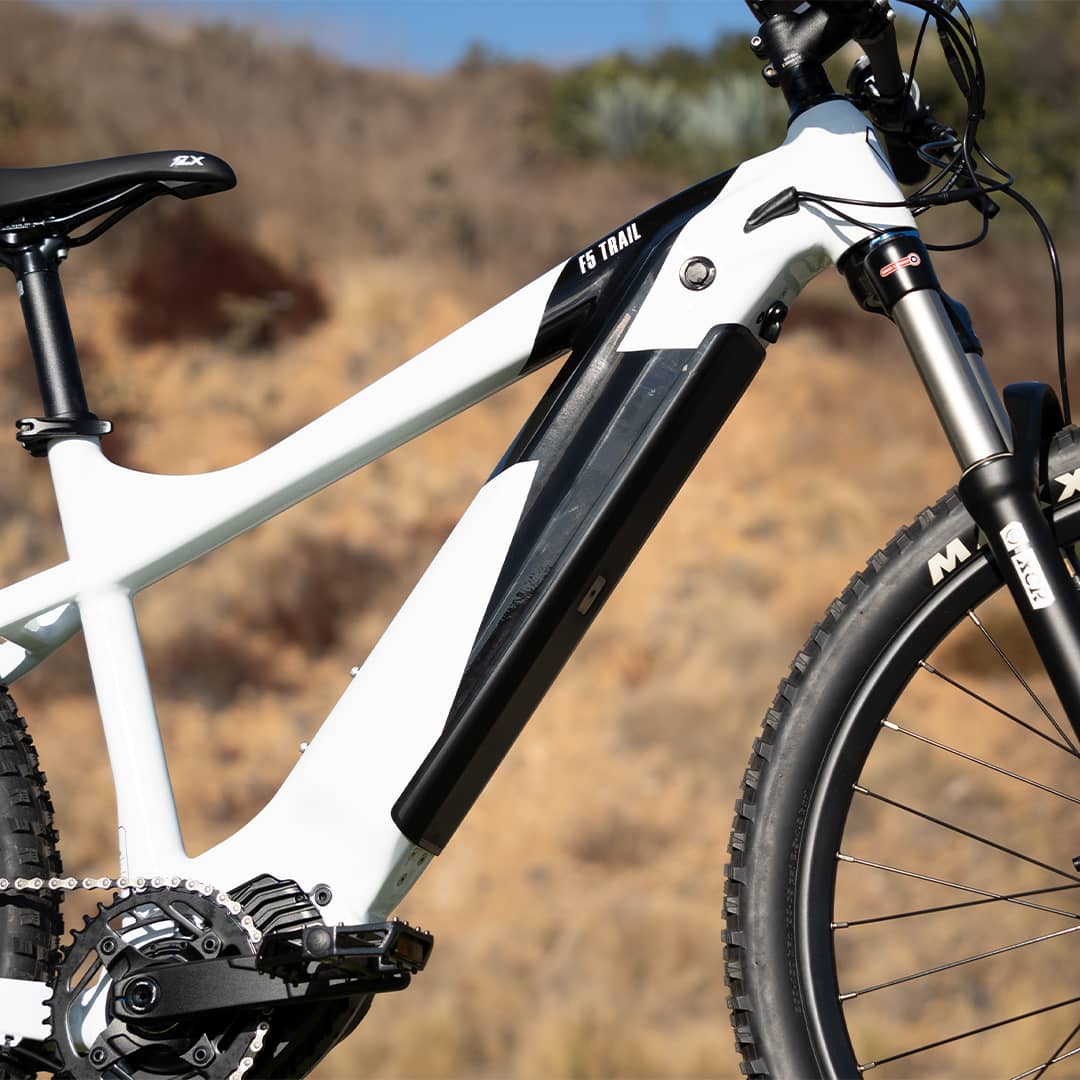

840wh Removable Batteries

An integrated 48V (840WH) lithium-ion battery in the down-tube offers both great looks and long range-riding. High capacity cells, the same ones used in the Tesla Model S, give you up-to 50+ miles of range. Charging time is about 6 hours for a full charge cycle.

FEATURE 02 / 06

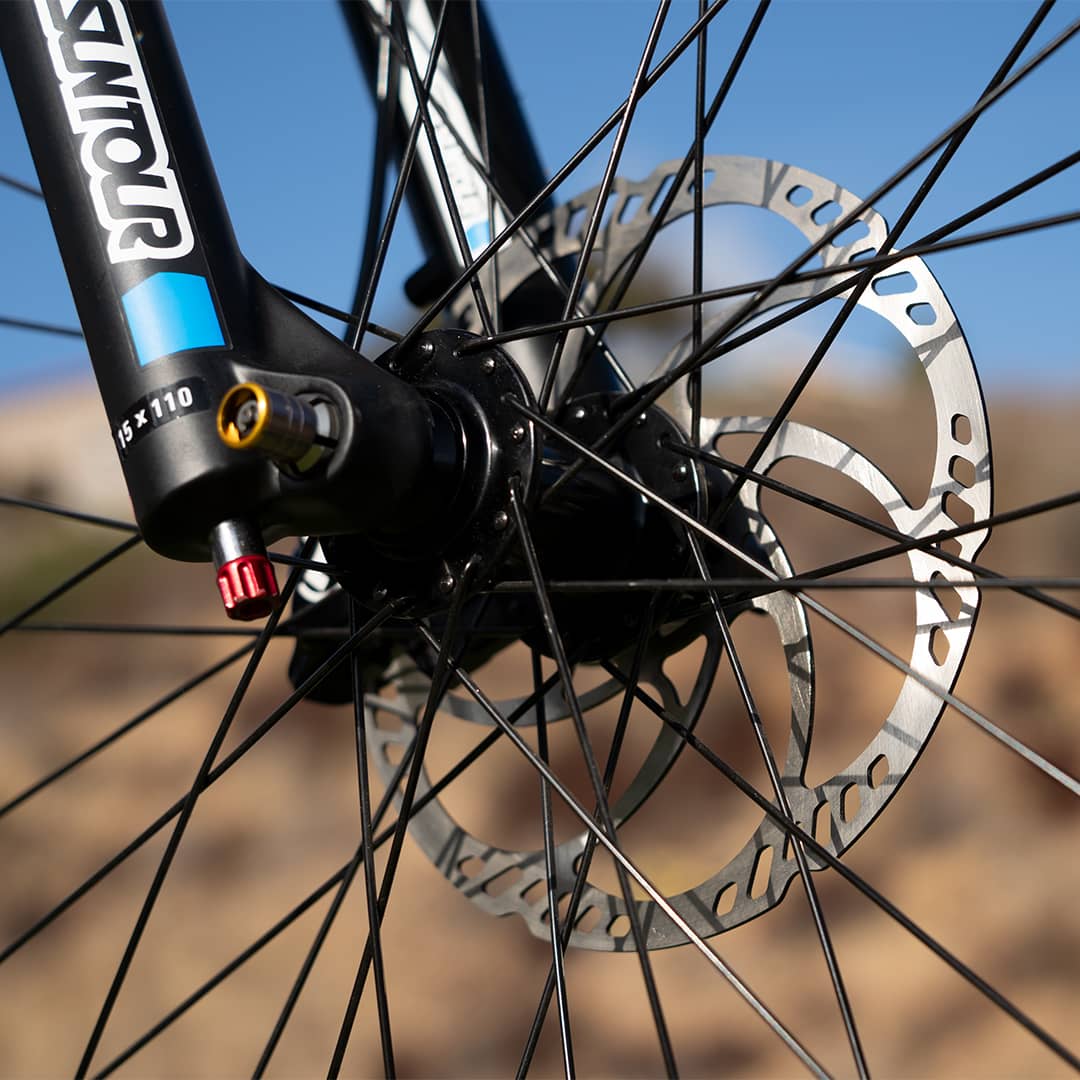

Hydraulic Disc Brakes

Magura MT5 4 piston hydraulic brakes offer outstanding braking force - perfect for the bike park or your home trail. Expect great stopping power and smooth lever action.

FEATURE 03 / 06

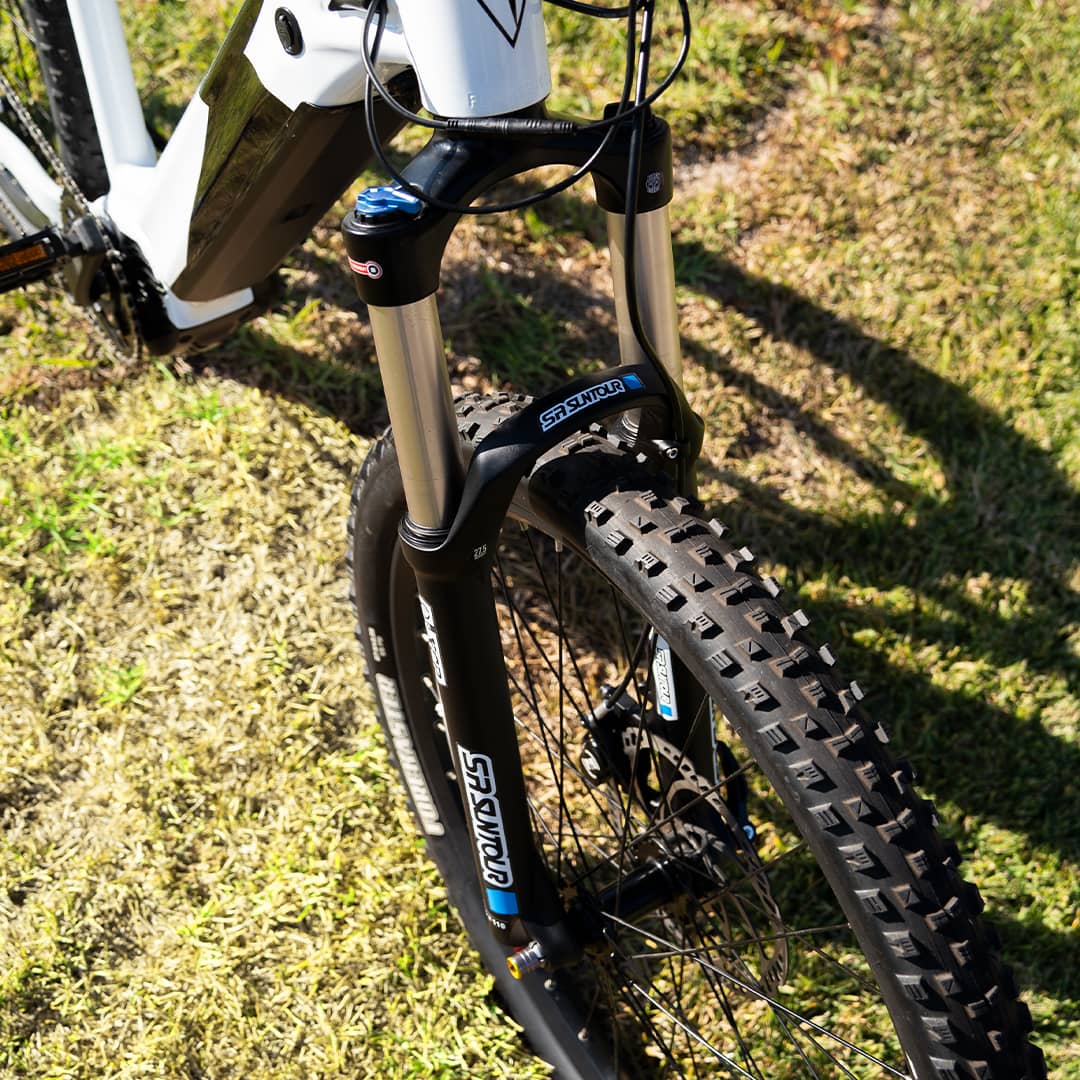

SR Suntour Suspension Fork

With 130mm of travel and adjustable compression and rebound settings, the SR Suntour has the perfect preload adjustments to make your ride ultra consistent.

FEATURE 04 / 06

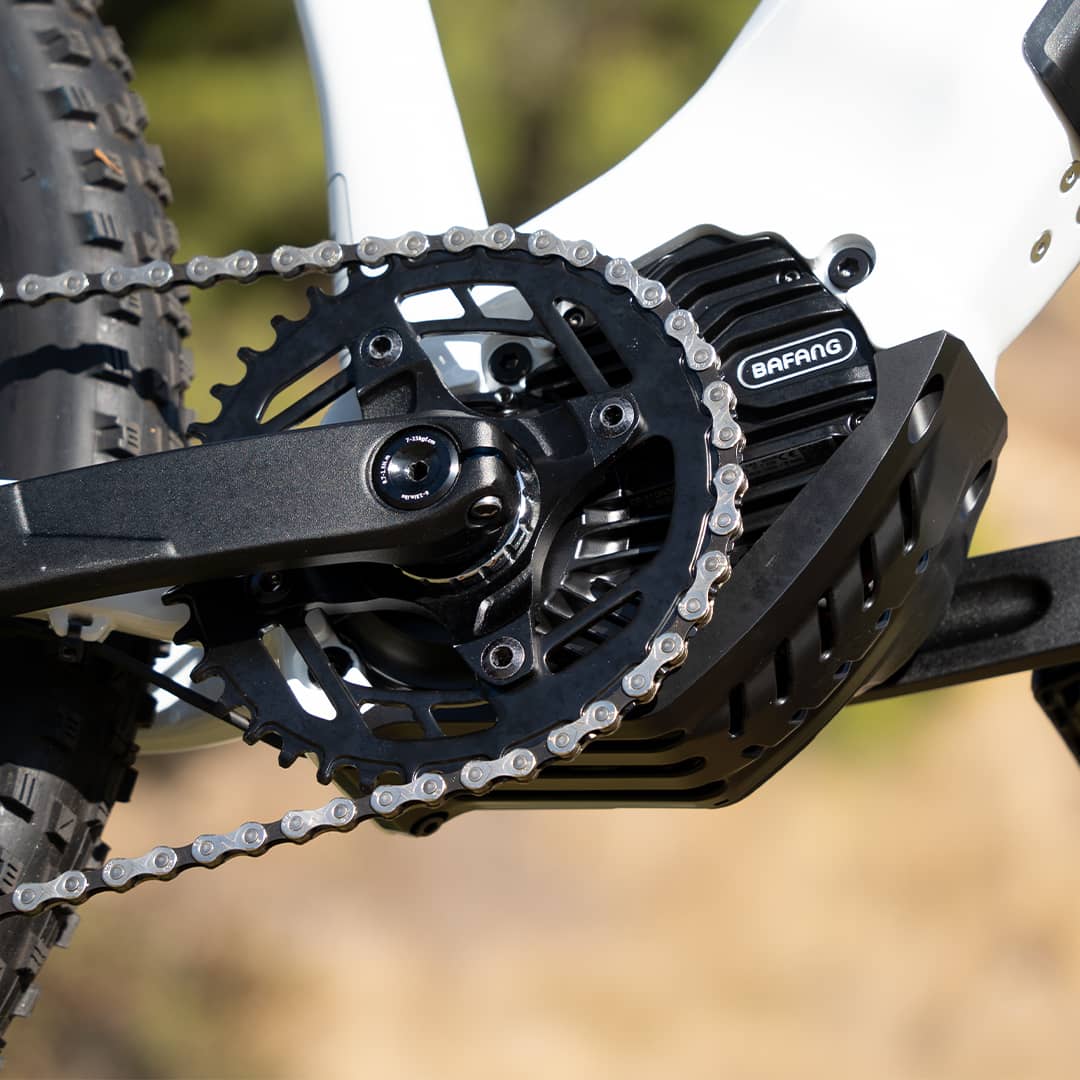

500W Mid-Drive Motor

The Bafang M600 mid-drive motor is among the most advanced and powerful mid-drive motors in its class. Though compact, it offers 500 Watts (120Nm) of smooth power (750W peak) for optimum hill climbing, range, and speed. Add the optional thumb throttle for additional speed control and smooth cruising.

FEATURE 05 / 06

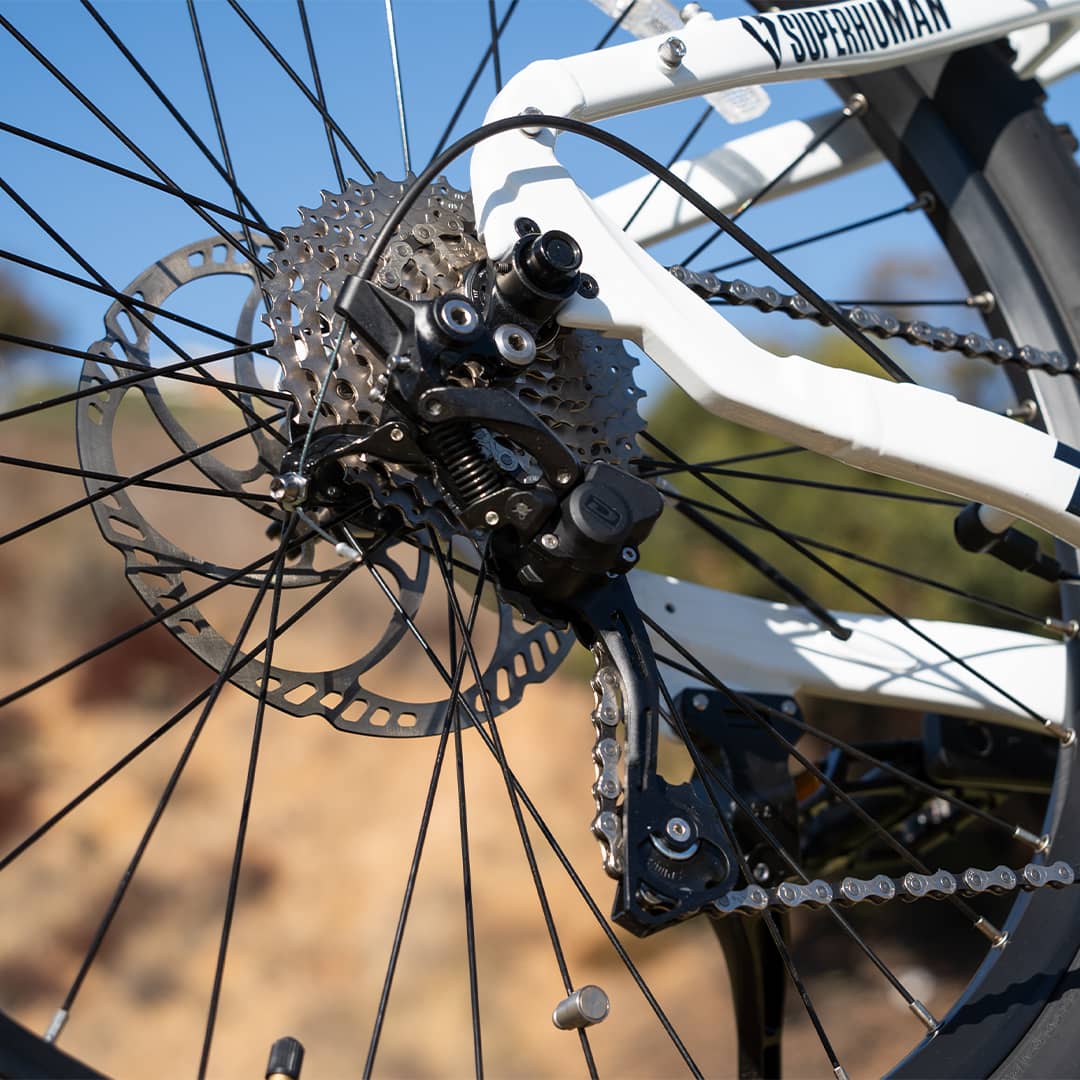

Shimano Drivetrain

The 10-Speed Shimano Deore Drivetrain was chosen especially for the smooth pedaling options it offers. Whether you're climbing hills or accelerating on the flats — the 11-36T cassette gear ratio allows the mid-drive motor to shine.

FEATURE 06 / 06

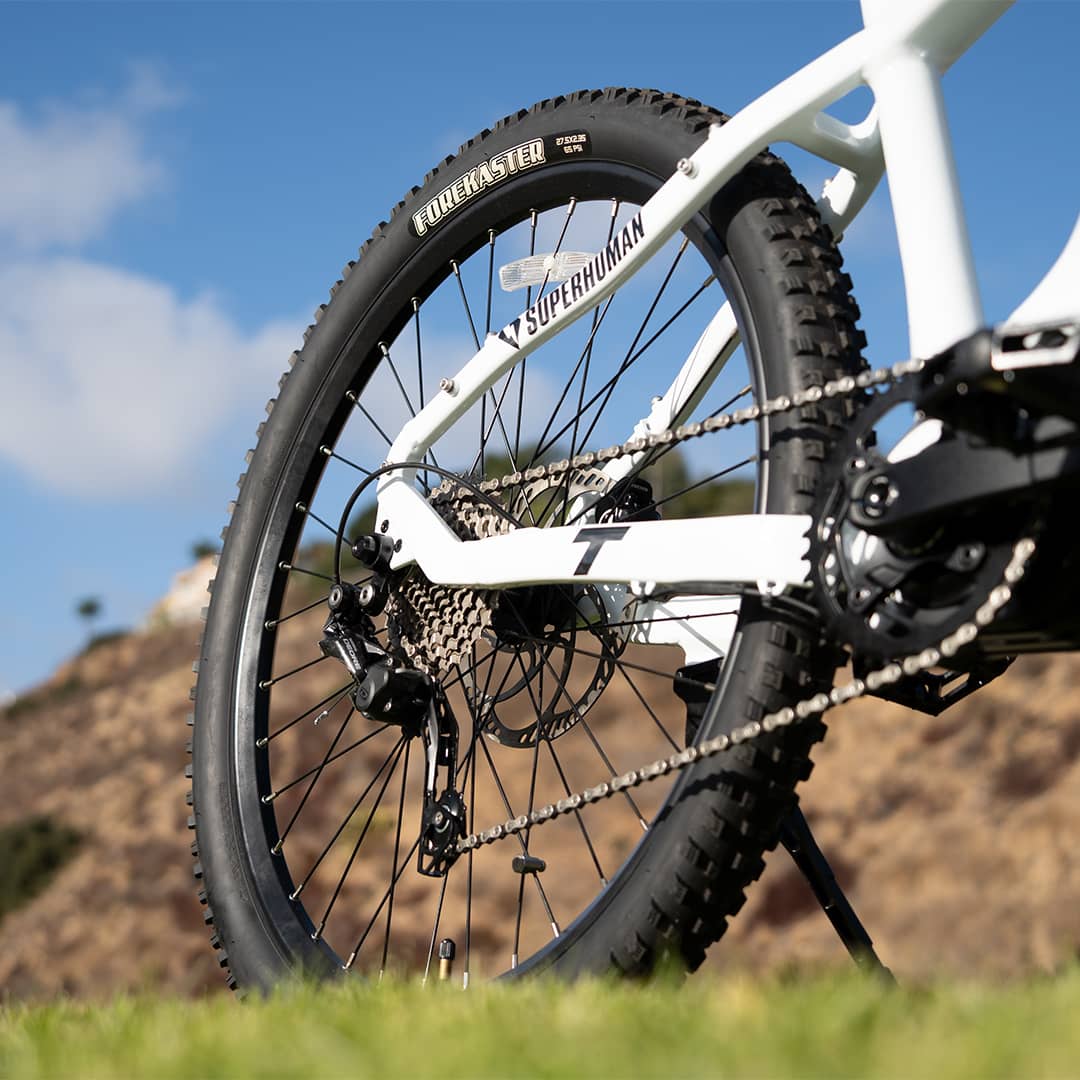

Maxxis Forkasters

The Maxxis Forekasters were chosen for their exceptional grip from soft tire compound and fast rolling 27" x 2.35" wide tread.

Full specs

Everything under the frame

Battery

48V 17.5AH Samsung Lithium Ion Cells

Range

50+ Miles

Charge Time

6 Hours @ 4AH

Motor

750W Peak Power / 500W Rated Power / Bafang M600 Mid-Drive Motor

Speed

28+ MPH

LCD Display

DPC18 Display with Speed Odometer, 5 Pedal Assist Levels, Battery Life

Pedal Assist

Torque Sensor

Drivetrain

Shimano Deore 10-Speed Derailleur

Crankset

170mm 40T Front Chainring

Pedals

KX005 Wellgo

Brakes

203mm Magura MT5 Hydraulic Disc

Grips

Velo Flat Rubber with Lockers

Saddle

Velo Branded

Seat Post Collar

31.6mm Aluminum Quick Release

Seat Post

300mm / 31.6mm (Length / Diameter)

Front Fork

Suntour XCR

Spokes

13 Gauge Stainless Steel

Tires

Maxxis 27.5 in Forekaster Cross Country

Total Weight

61 lb (27.7 kg)

Battery Weight

10.5 lb (4.8 kg)

Rated Weight Capacity

275 lb (124.74 kg)

Frame Material

6061 Aircraft Grade Aluminum

Accessory Mounts

Seat Tube, Bottle Cage, Rear Rack

Walk Assist

Press and Hold

Gravel Ready

Yes

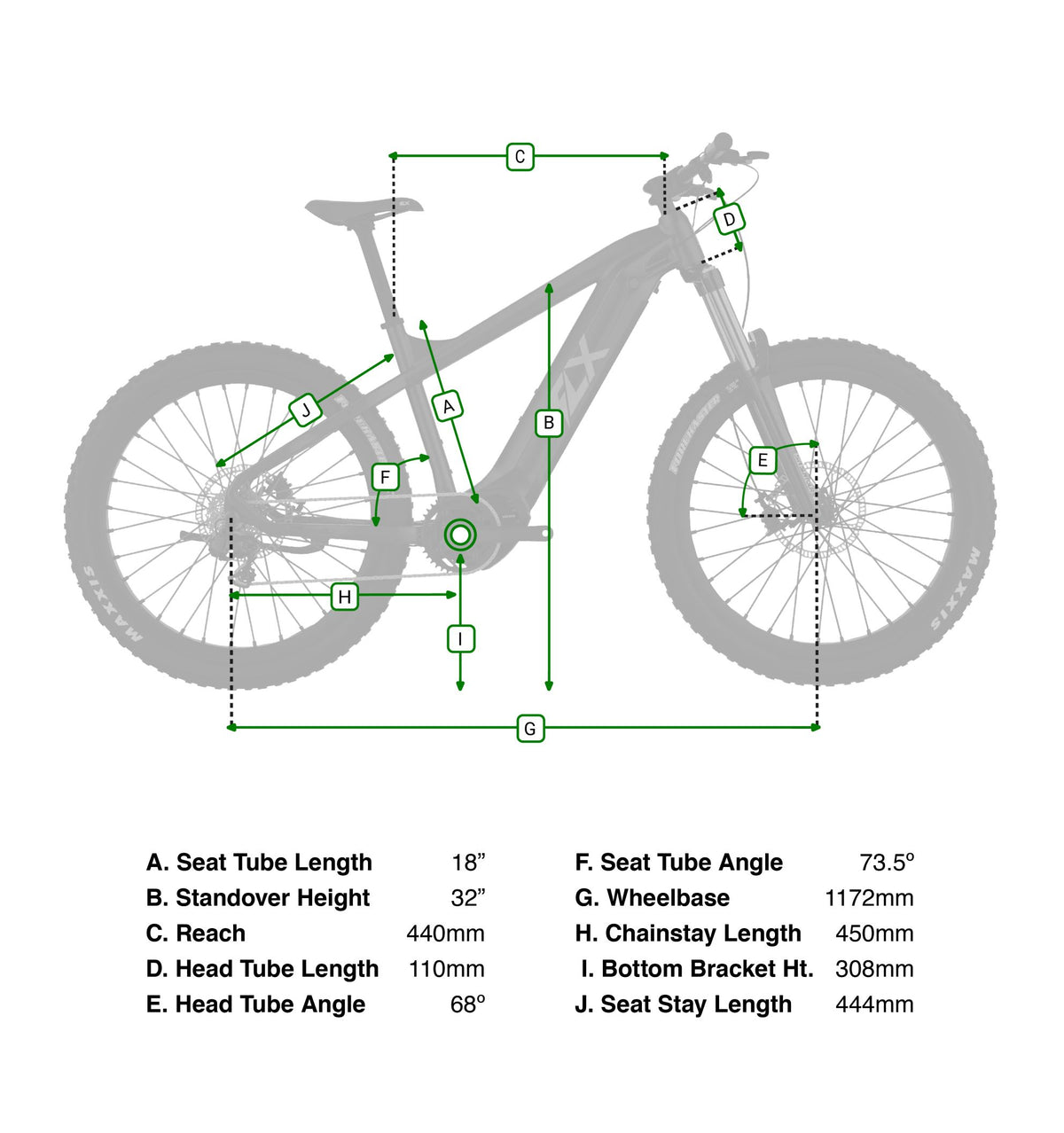

F5 Trail geometry diagram

Rider Height

5'1" - 6'7"

A. Seat Tube Length

18 in

B. Standover Height

32 in

C. Reach

440 mm

D. Head Tube Length

110 mm

E. Head Tube Angle

68 degrees

F. Seat Tube Angle

73.5 degrees

G. Wheelbase

1172 mm

H. Chainstay Length

450 mm

I. Bottom Bracket Height

308 mm

J. Seat Stay Length

444 mm
