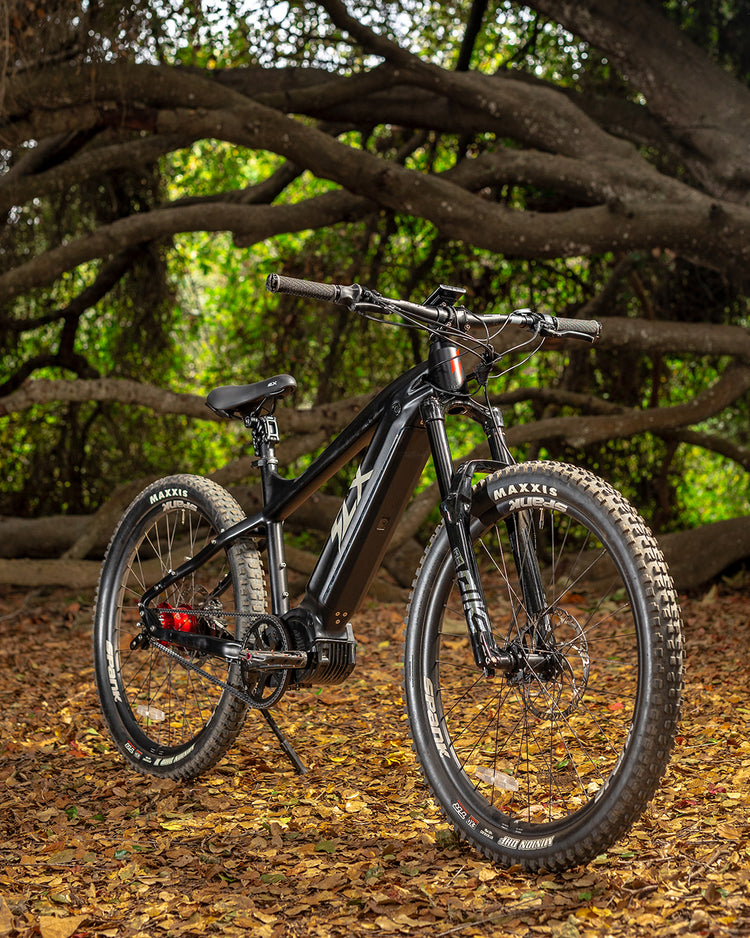

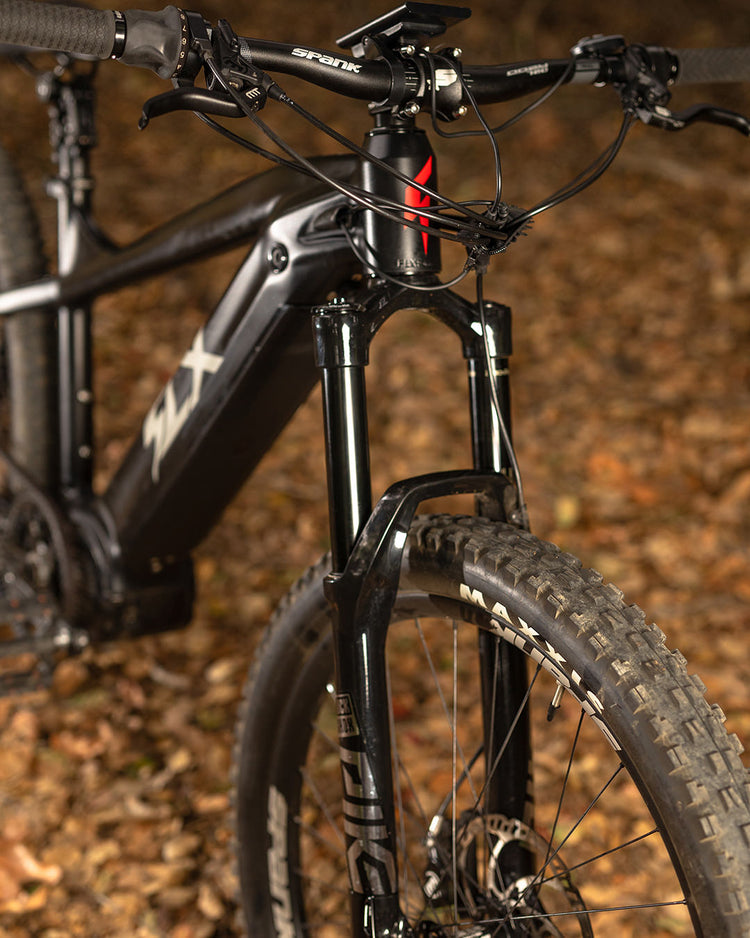

Blade 2.0
1000W BELT DRIVE E-MTB
Our Blade electric mountain bike has been one of the HOTTEST eBikes on the market ever since it was released, and for good reason.
We've packed in ALL the latest technology to craft the Blade 2.0 - and it performs. A huge 52V battery combines with belt-driven 1000W mid-drive power to take your off-road shred session to the next level!
1000W BELT DRIVE
E-MTB
TECH SPECS
| Battery | 52V 17.5AH Samsung Lithium Ion Cells |
|---|---|
| Range | 40+ Miles |
| Charge Time | 4 Hours @ 4AH |

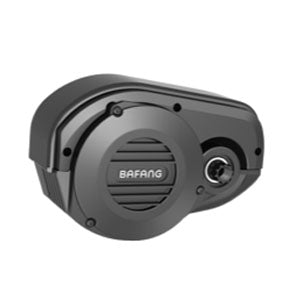

| Motor | 1000W Bafang Ultra Mid-Motor |
| Speed | 28+ MPH |
| Torque / Output | 160 Nm / 1000 W Nominal / 1500 W Peak |
| LCD Display | C240 Bafang Display |
| Display Features | Speed Display, Range, Odometer |
| Pedal Assist | Torque Sensor |
Components

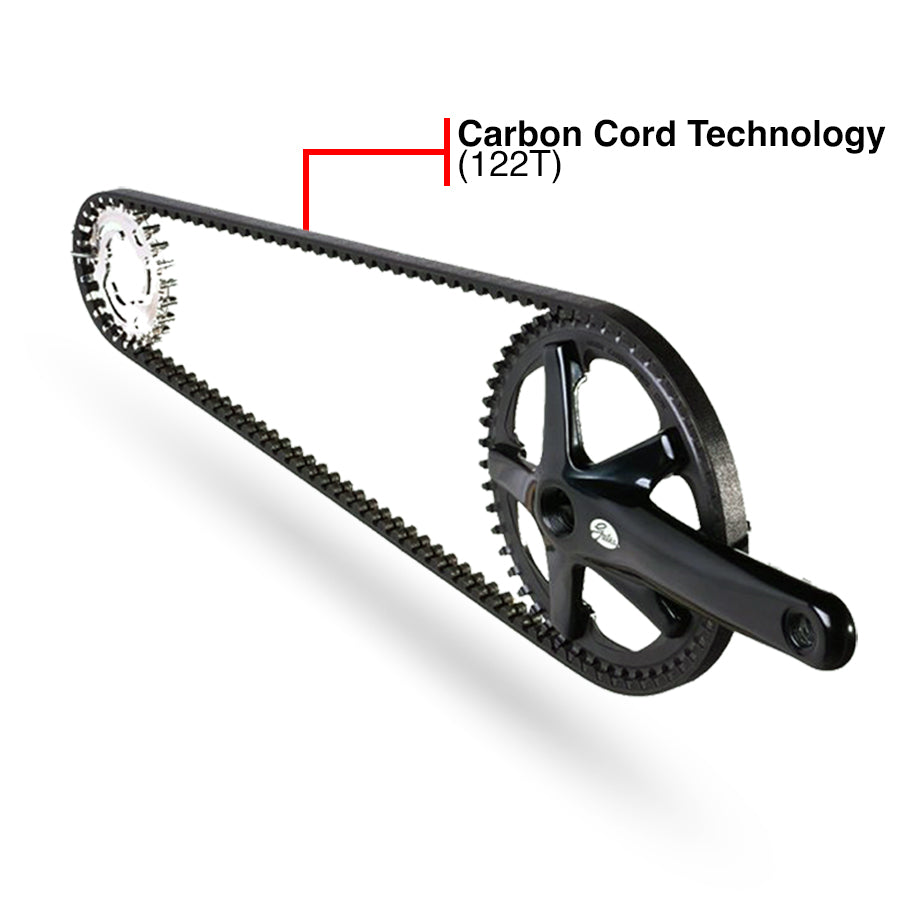

| Drivetrain | 55T Gates USA Belt Drive |
|---|---|
| Crankset | Isis Spline Drive 55T |
| Pedals | FUNN Black Magic |
| Brakes | SRAM GR2 Hydraulic Disc |
| Handlebar | 780 mm Spank Oozy Trail |
| Saddle | Cionlli FUNN |
| Seat Post Collar | 38.1mm Aluminum Quick Release |
| Seat Post | 300 mm / 31.6mm (Length / Diameter) |

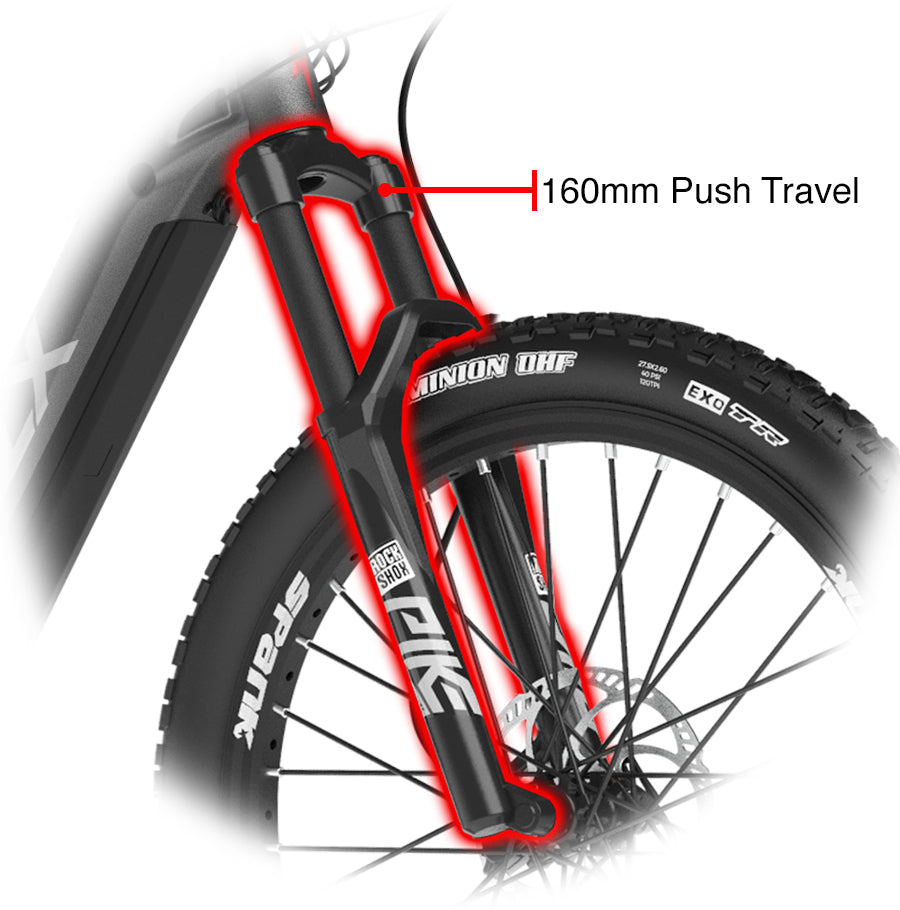

| Front Fork | RockShox Pike Ultimate 160 mm Travel |
| Spokes | 13 Gauge Stainless Steel |

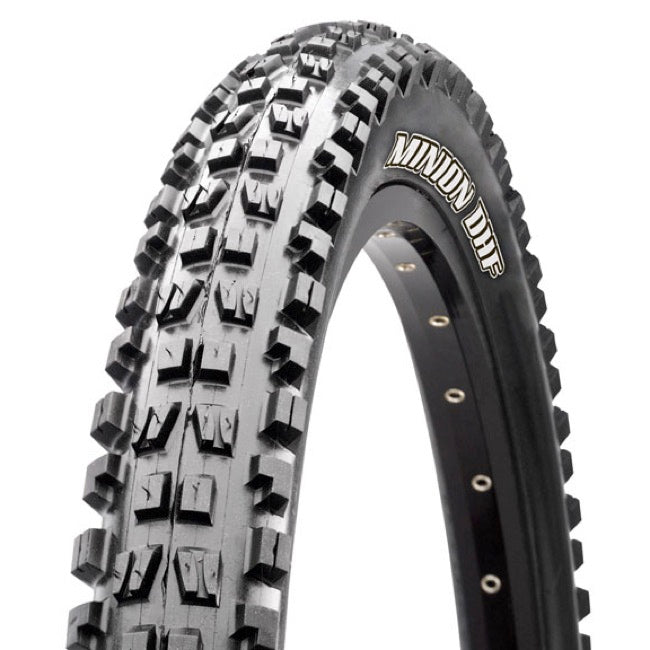

| Tires | Maxxis Minion DHR 27.5" x 2.6" EVO Casing (Tubeless Ready) |
General
| Total Weight | 64.4 lb (29.21 kg) |
|---|---|
| Battery Weight | 10.5 lb (4.76 kg) |
| Rated Weight Capacity | 275 lb (124.74 kg) |
| Frame Material | 6061 Aircraft Grade Aluminum |
| Accessory Mounts | Seat Tube, Bottle Cage, Rear Rack |
| Walk Assist | Single Press |
| Customizable | Countless Accessories |
geometry & Fit
| A. Seat Tube Length | 17" |
|---|---|
| B. Standover Height | 32 in |
| C. Reach | 430 mm |
| D. Head Tube Length | 110 mm |
| E. Head Tube Angle | 68 degrees |
| F. Seat Tube Angle | 73.5 degrees |
| G. Wheelbase | 1047 mm |
| H. Chainstay Length | 403 mm |
| I. Bottom Bracket Height |
279 mm |
| J. Seat Stay Length |
469 mm |
FAQ
Where do I find the User Manual?
You can Bookmark and Download the Blade 2.0 User Manual here.
How long will my bike take to ship?
In Stock bikes ship on our standard ship 5-10 day ship schedule. Exceptions apply.
Is it hard to assemble when it arrives at my house?
Your Blade 2.0 will arrive mostly assembled. The pedals, front tire, seat and handlebars need to be installed. Kickstand is pre- installed.
Not so sure? When in doubt we recommended contacting your local bike mechanic for help.
Unfortunately, damages resulting from improper assembly are not covered under warranty.
What is the warranty on the Blade 2.0?
We offer a standard 1 year warranty on any defective components and electronics. In addition, we have partnered with Mulberry to provide an extended warranty option.
What's included in the touring package?
Whether you're touring, commuting, grocery getting or anything in between, this package will allow you to get the most out of your Blade 2.0.
Kit includes:
- SR Suntour NCX suspension seatpost
- Cargo Rack
- Front and Rear Fenders
- Integrated Front/Rear Lights
- Smartphone Mount
Compare All Models
How long will my bike take to ship?
In Stock bikes ship on our standard ship 5-10 day ship schedule. Exceptions apply.
ABOUT
Our Blade electric mountain bike has been one of the HOTTEST eBikes on the market ever since it was released, and for good reason.
We've packed in ALL the latest technology to craft the Blade 2.0 - and it performs. A huge 52V battery combines with belt-driven 1000W mid-drive power to take your off-road shred session to the next level!
Blade 2.0 Features
