The Blade 2.0 at a Glance.

Range, est.

50+mi

50+ mi depending on terrain & pedal-assist level

Top speed

35mph

1500W peak / 1000W rated Bafang Ultra mid-drive

Charge time

4hrs

52V 17.5AH Samsung lithium-ion cells

Total weight

64lb

Full-suspension aluminum frame

How far will a charge take you?Estimates scaled from the 52V 17.5AH (910 Wh) battery — published range is 50+ mi~50 mi est.
1 miTrailhead warm-up
11 miHalf-day loop
29 miFull-day epic
50 miMax, one charge
50+ miRange, est.
35 mphTop speed
4 hrsCharge time
64 lbTotal weight
Superhuman Bikes

FEATURE 01 / 06

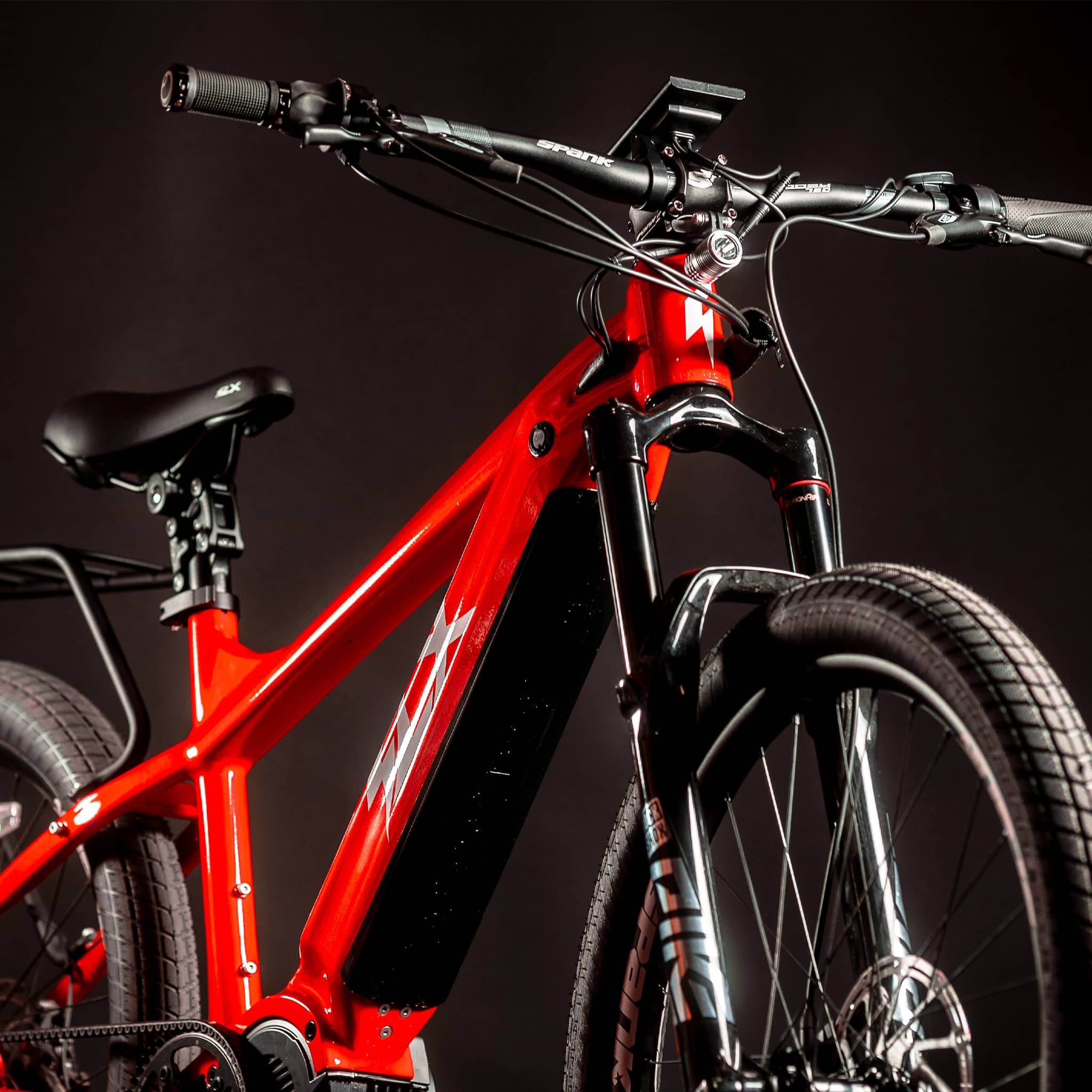

910wH Removeable Batteries

An integrated 52V 910wH lithium-ion battery in the down-tube offers both great looks and long range-riding. High capacity cells, the same ones used in the Tesla Model S, give you up-to 50+ miles of range. Charging time is about 6 hours for a full charge cycle.

FEATURE 02 / 06

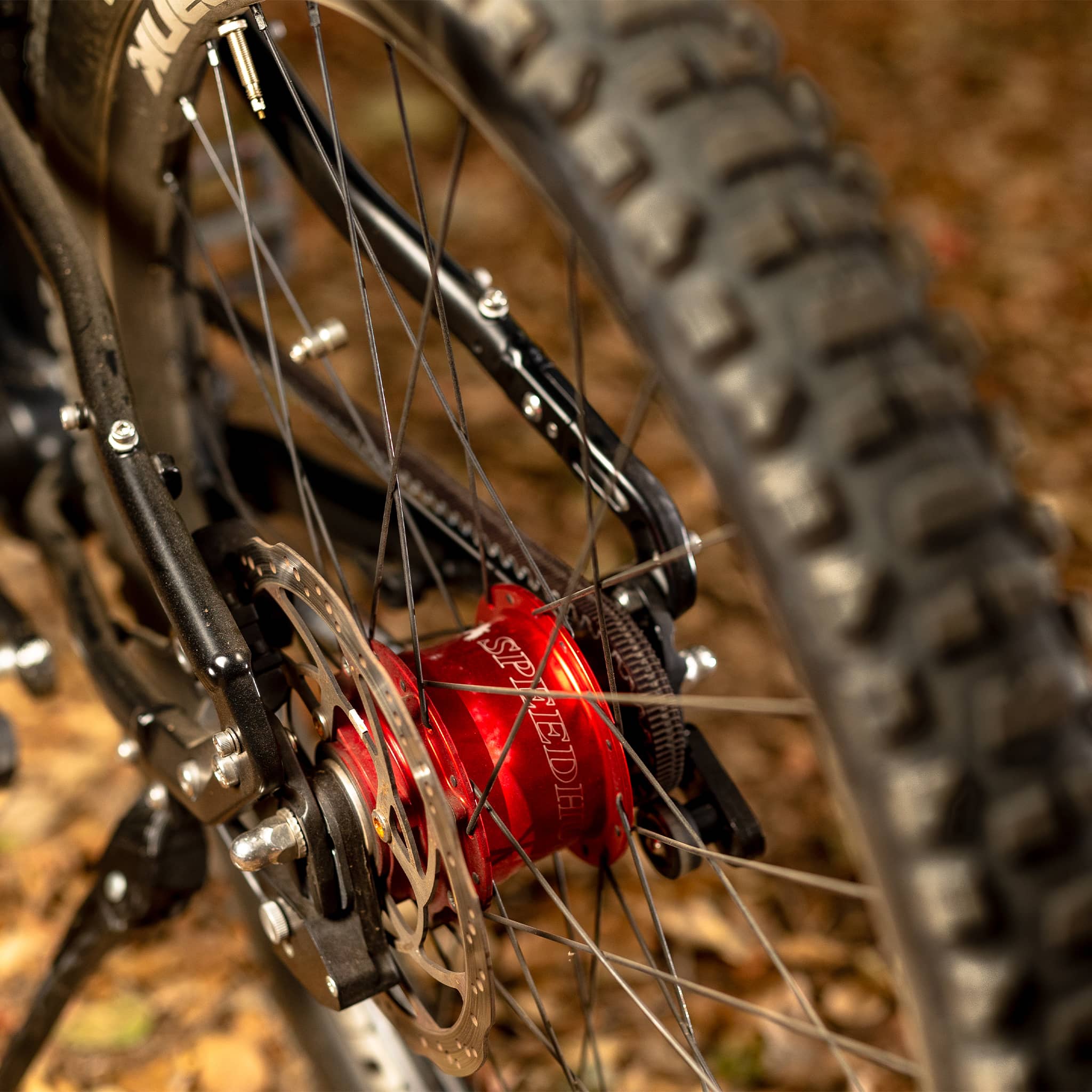

Rohloff Speedhub

The Internally Geared Rohloff Speedhub was chosen especially for the smooth shifting functionality. Use your hand to grab the perfect gear, whether you're climbing hills or accelerating on the flats — the Belt-Drive system allows the mid-drive motor to shine.

FEATURE 03 / 06

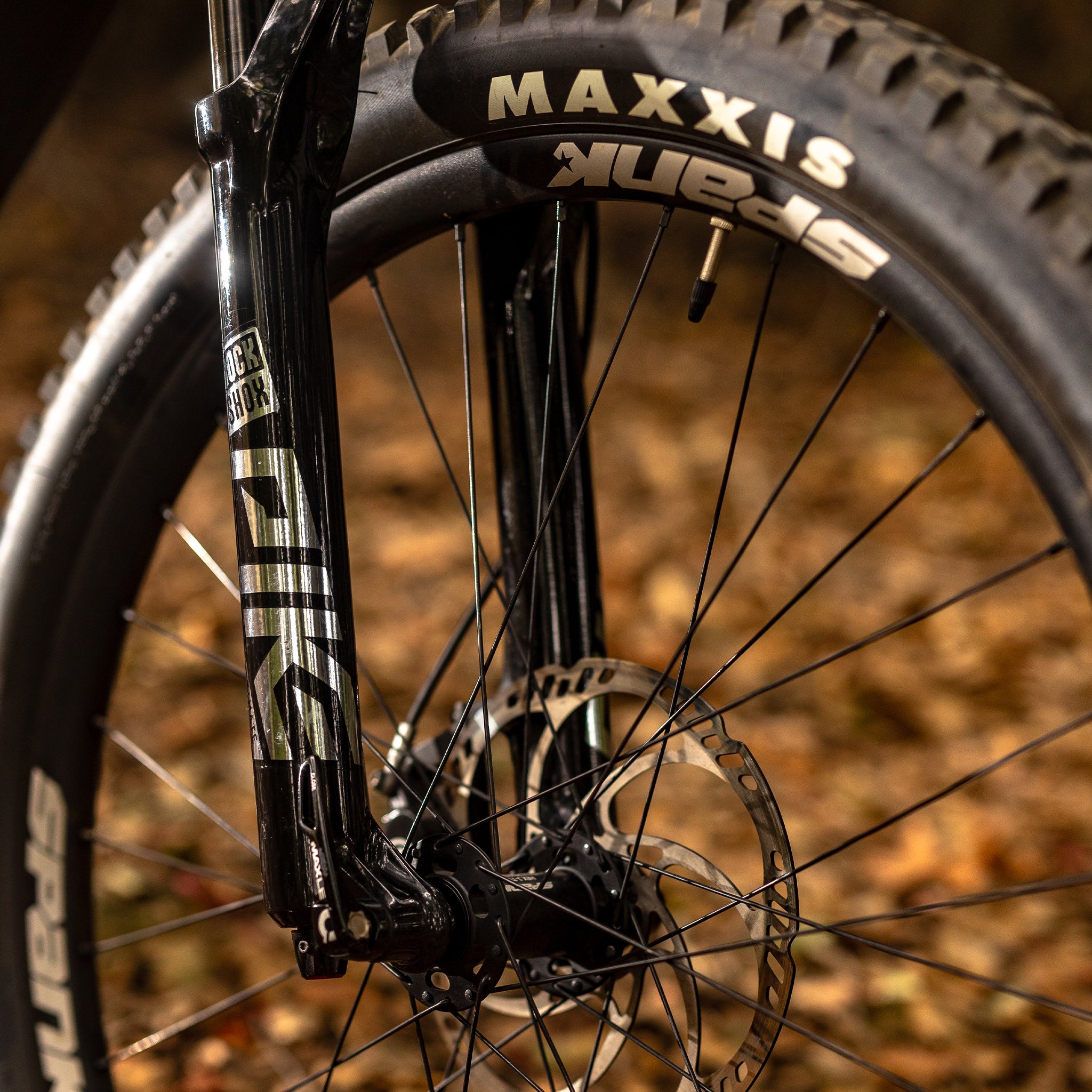

Rockshox Pike Ultimate Fork

The Pike Ultimate features 160mm of plush travel, 35mm stanchions, and DebonAir+ Technology to give you the smoothest and most comfortable ride you could ask for from a Hardtail bike.

FEATURE 04 / 06

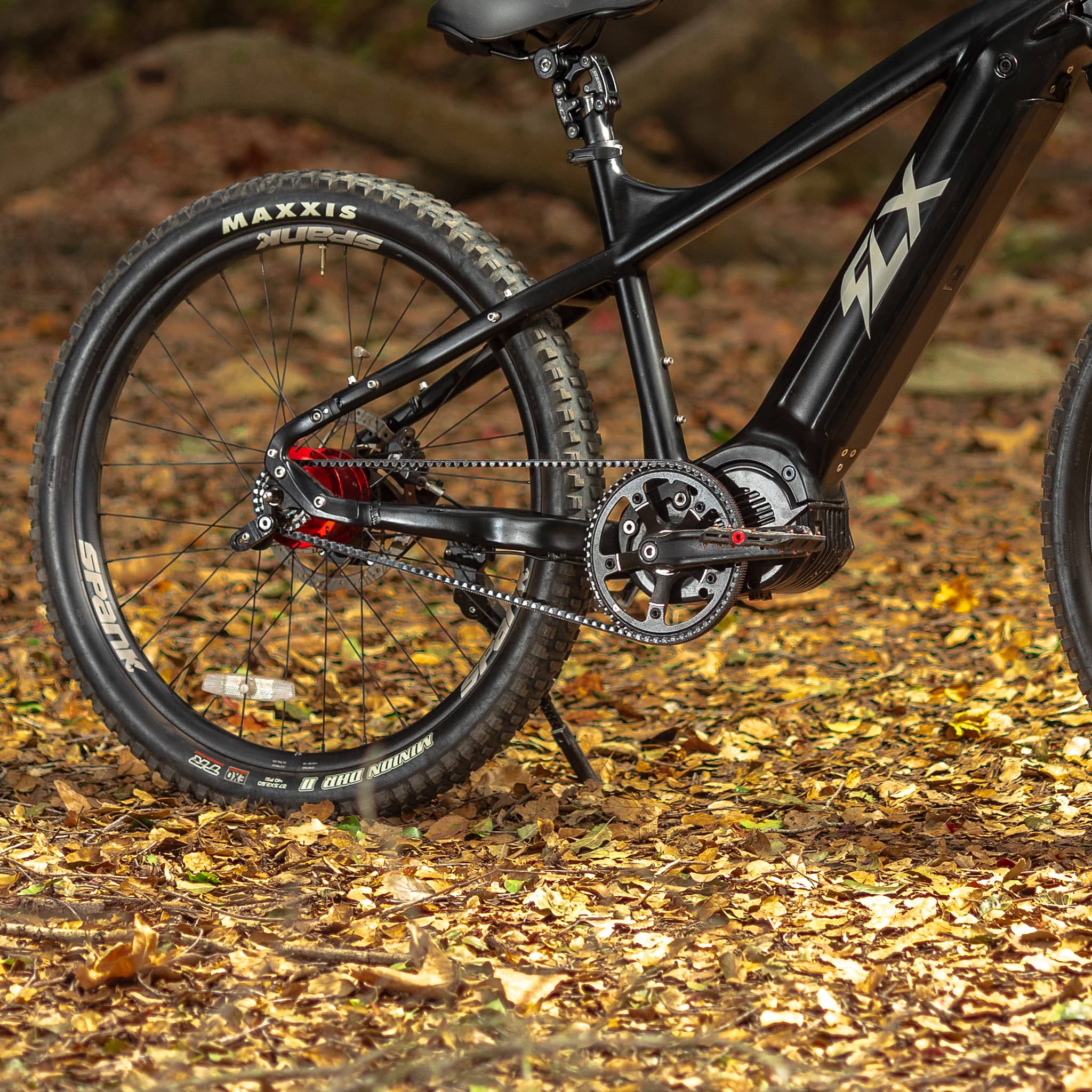

1000W Bafang Ultimate Mid-Drive Motor

The Bafang Ultra Mid-Drive motor is among the most advanced and powerful mid-drive motors in its class. Though compact, it offers 1000 Watts of smooth power for optimum hill climbing, range, and speed. Use the included thumb throttle for additional speed control and smooth cruising.

FEATURE 05 / 06

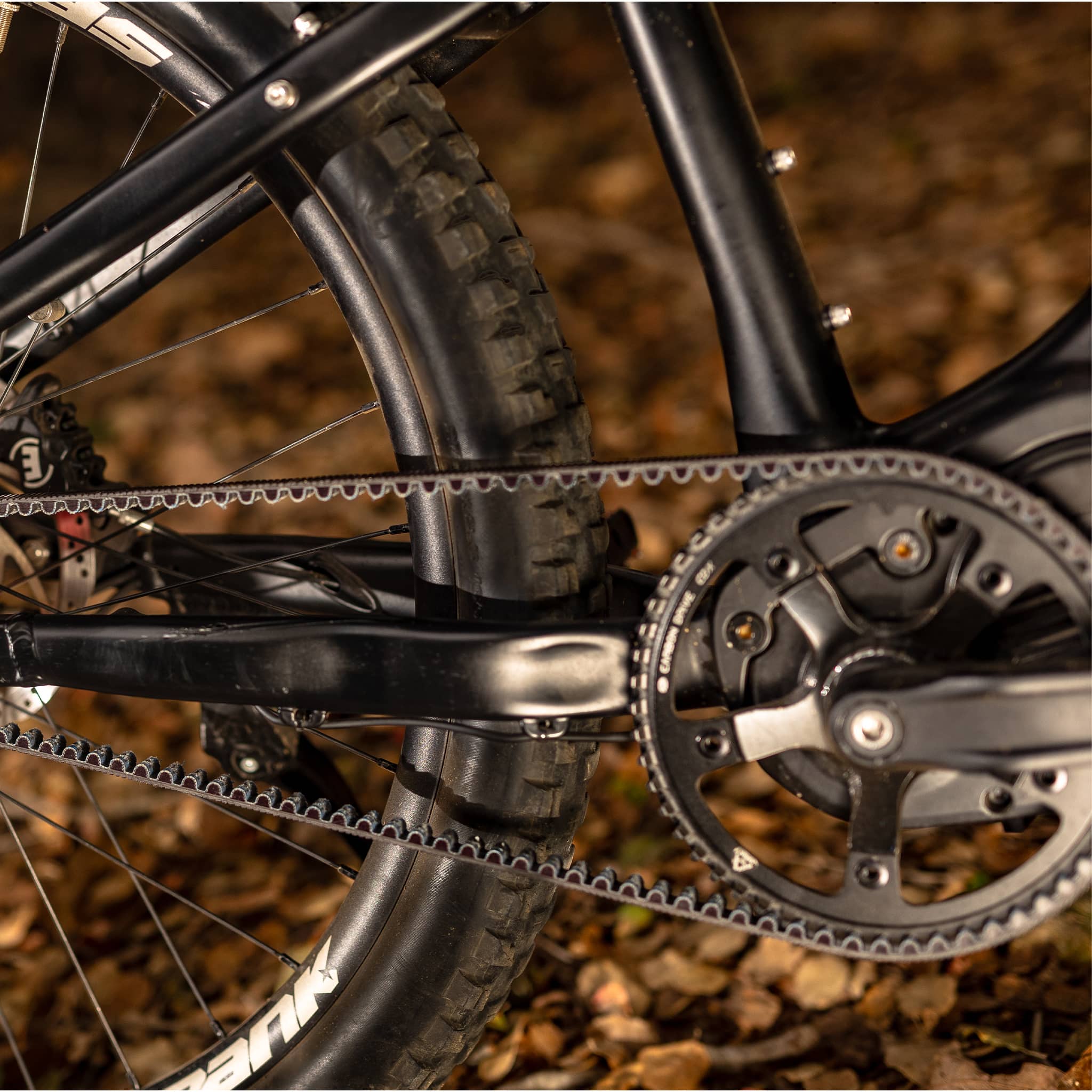

Gates Belt Drive

The Gates Belt Drive is Low Maintenance and keeps you riding longer and farther with no worries. The belt system is more durable than a chain, doesn't rust, or require grease. It's simply the smoothest ride of your life.

FEATURE 06 / 06

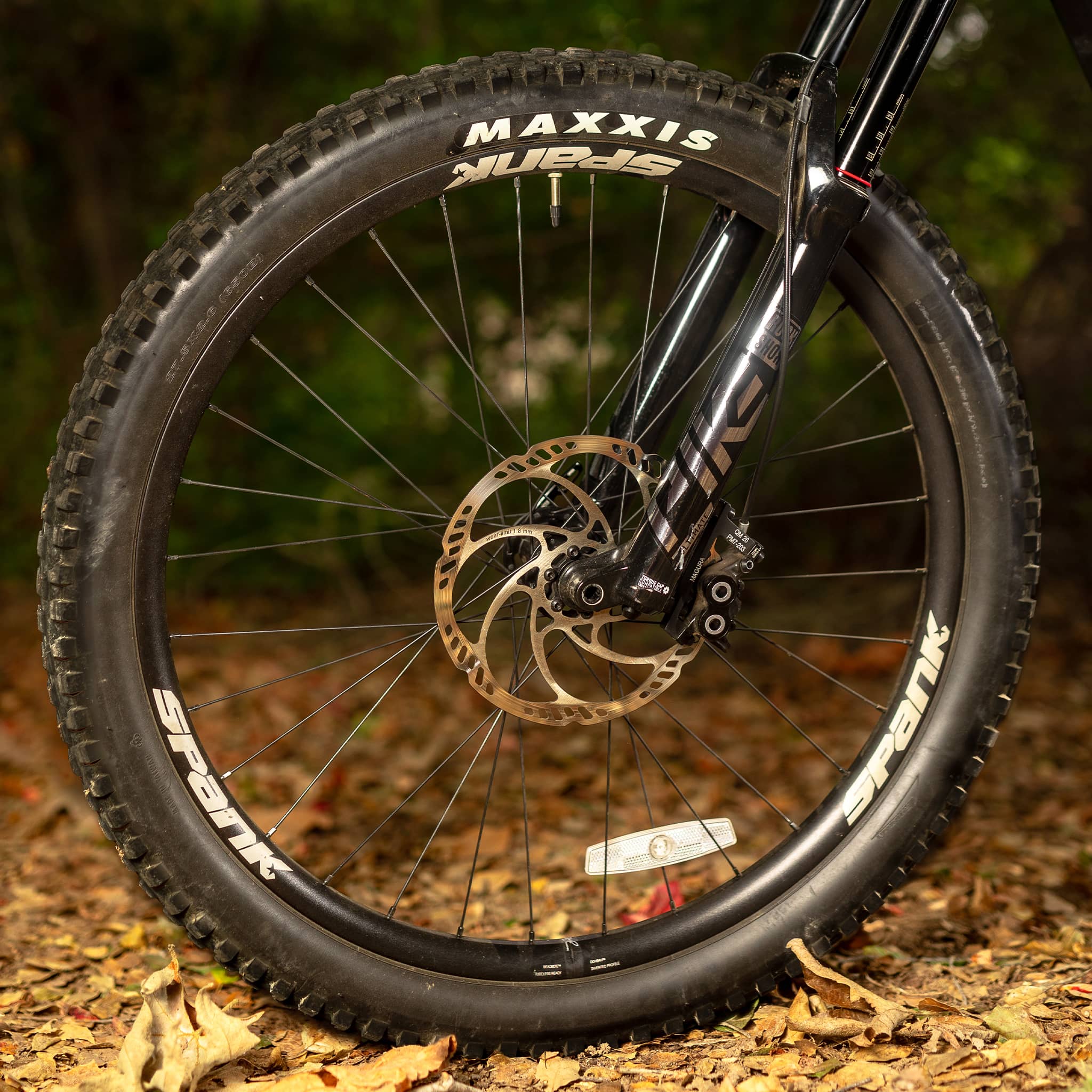

Maxxis Minion Tires

The Maxxis Minion DHF 27.5 x 2.6 treads give the Blade aggressive traction and reliable tire pressures no matter the temp. The soft tire compound gives you exceptional grip and is Tubeless ready.

Full specs

Everything under the frame

Battery

52V 17.5AH Samsung Lithium Ion Cells

Range

50+ Miles

Charge Time

4 Hours @ 4AH

Motor

1500W Peak Power / 1000W Rated Power / Bafang Ultra Mid-Drive Motor

Speed

35 MPH

LCD Display

DPC18 Display with Speed Odometer, 5 Pedal Assist Levels, Battery Life

Pedal Assist

Torque Sensor

Torque

160 Nm

Drivetrain

55T Gates USA Belt Drive

Crankset

Isis Spline Drive 55T

Pedals

FUNN Black Magic

Brakes

SRAM GR2 Hydraulic Disc

Handlebar

780 mm Spank Oozy Trail

Saddle

Cionlli FUNN

Seat Post Collar

38.1mm Aluminum Quick Release

Seat Post

300mm / 31.6mm (Length / Diameter)

Front Fork

RockShox Pike Ultimate 160 mm Travel

Spokes

13 Gauge Stainless Steel

Tires

Maxxis Minion DHR 27.5" x 2.6" EVO Casing (Tubeless Ready)

Total Weight

64.4 lb (29.2 kg)

Battery Weight

10.5 lb (4.8 kg)

Rated Weight Capacity

275 lb (124.74 kg)

Frame Material

6061 Aircraft Grade Aluminum

Accessory Mounts

Seat Tube, Bottle Cage, Rear Rack

Walk Assist

Press and Hold

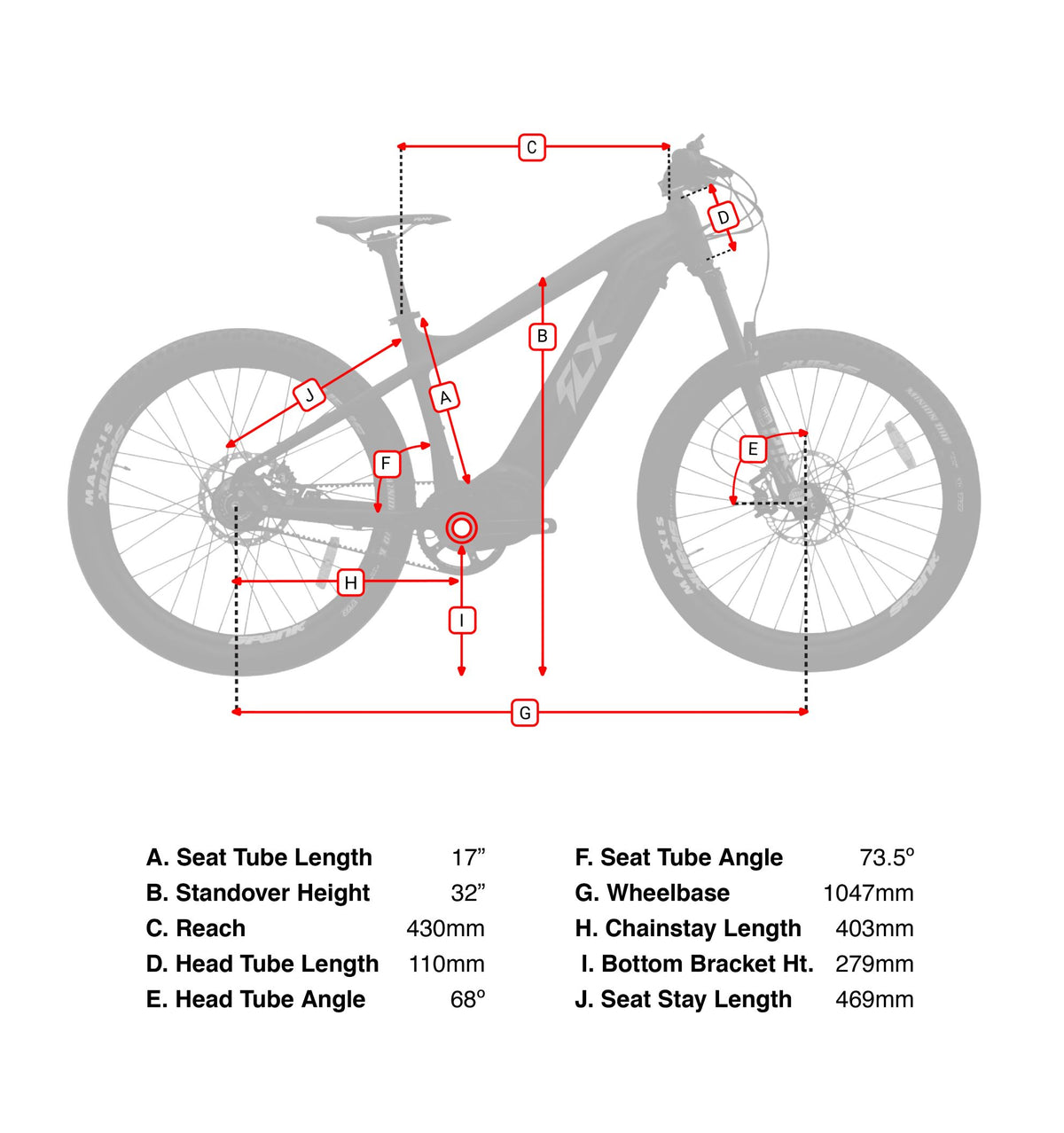

Blade 2.0 geometry diagram

Rider Height

5'0" - 6'5"

A. Seat Tube Length

17 in

B. Standover Height

32 in

C. Reach

430 mm

D. Head Tube Length

110 mm

E. Head Tube Angle

68 degrees

F. Seat Tube Angle

73.5 degrees

G. Wheelbase

1047 mm

H. Chainstay Length

403 mm

I. Bottom Bracket Height

279 mm

J. Seat Stay Length

469 mm
