ultimate ADVENTURE MOUNTAIN BIKE
This F5 Trail 27.5 electric mountain bike is your ticket to adventure.
This electric mountain bike has an incredible 840Wh battery and a powerful M600 Bafang 500W mid-drive motor to electrify your ride.
F5 Trail eMTB
OFF ROAD ADVENTURE
Our F5 Trail 27.5 electric mountain bike is your ticket to adventure.
This electric mountain bike has an incredible 840Wh battery and a powerful M600 Bafang 500W mid-drive motor to electrify your ride.
28 MPH TOP SPEED
50+ MILE RANGE
650 / 840 WH
WEIGHS 61 LBS
TECH SPECS

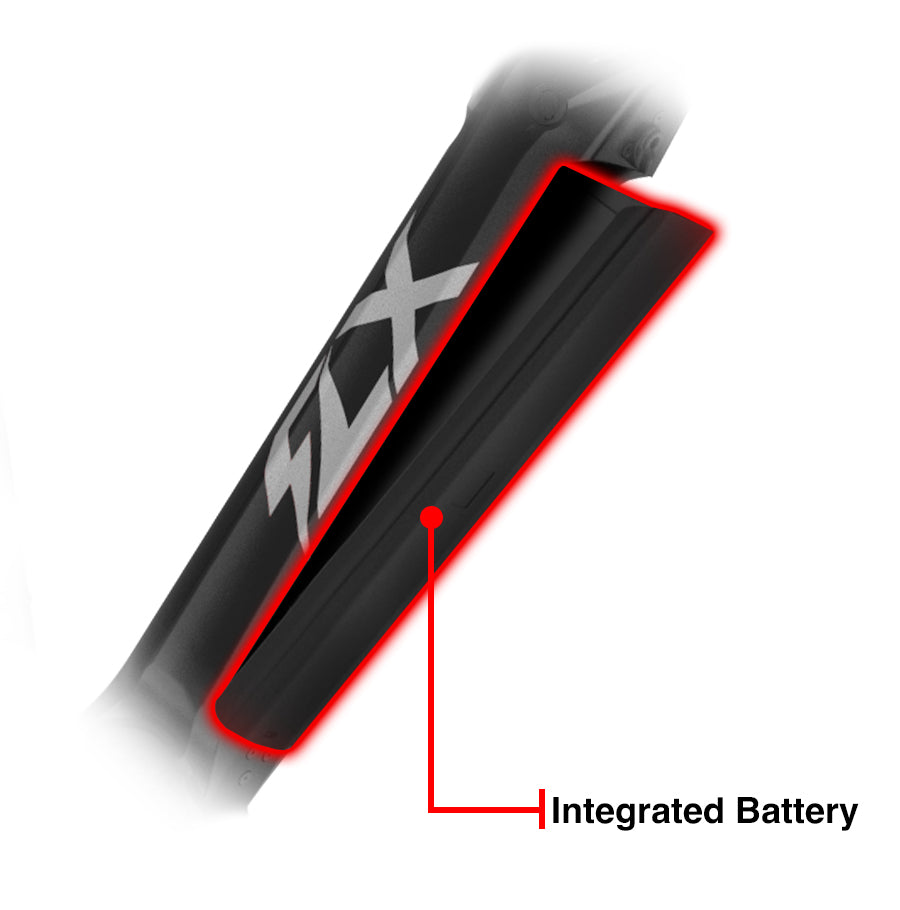

Battery | 48V 17.5AH Samsung Lithium Ion Cells |
---|---|
Range | 50+ Miles |
Charge Time | 6 Hours @ 4AH |

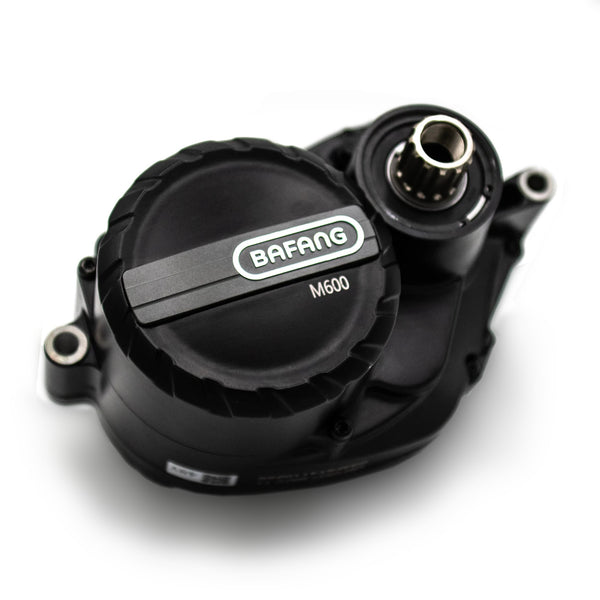

Motor | 500W Bafang Mid-Motor |
Speed | 28+ MPH |
LCD Display | C240 Bafang Display |
Display Features | Speed Display, Range, Odometer |
Pedal Assist | Torque Sensor |
Components
Drivetrain | Shimano Deore 10-Speed Derailleur |
---|---|
Crankset | 170mm 40T Front Chainring |
Pedals | KX005 Wellgo |

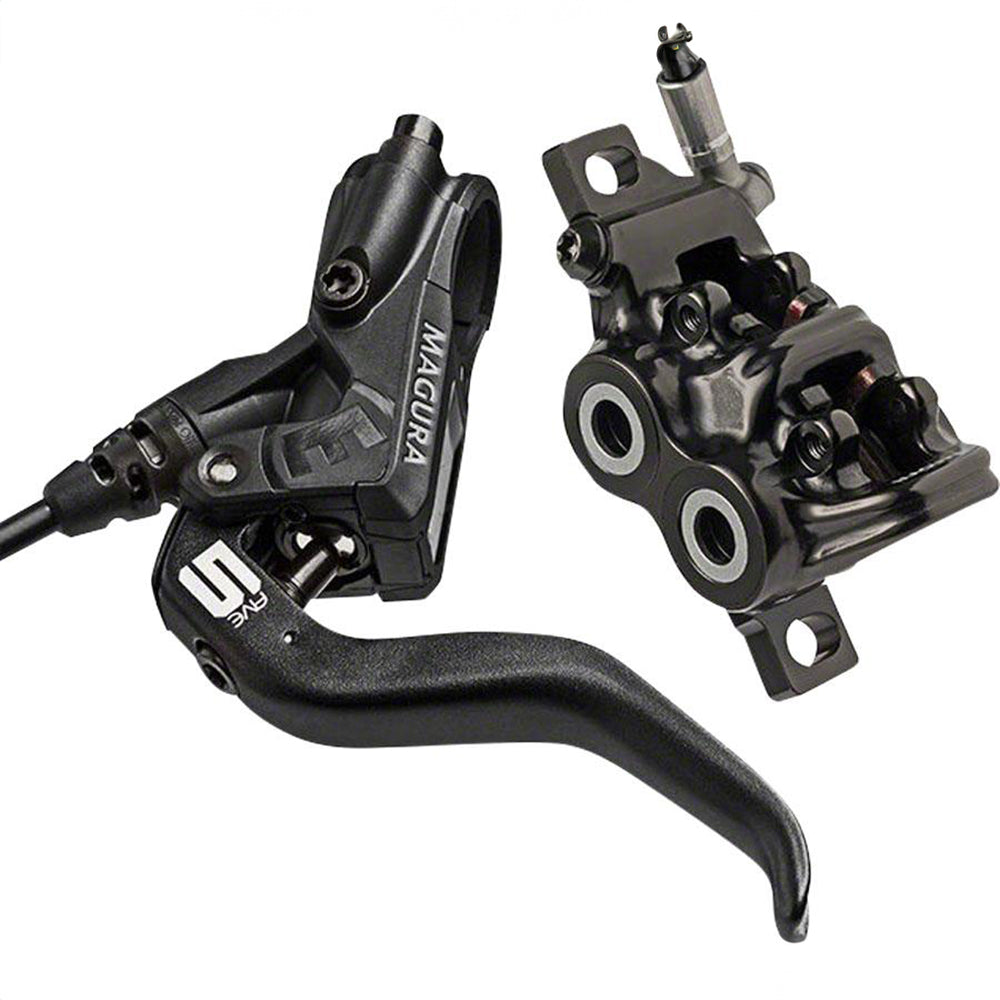

Brakes | 203mm Magura MT5 Hydraulic Disc |
Grips | Velo Flat Rubber with Lockers |
Saddle | Velo FLX Branded |
Seat Post Collar | 31.6mm Aluminum Quick Release |
Seat Post | 300mm / 31.6mm (Length / Diameter) |
Front Fork | Suntour XCR |
Spokes | 13 Gauge Stainless Steel |

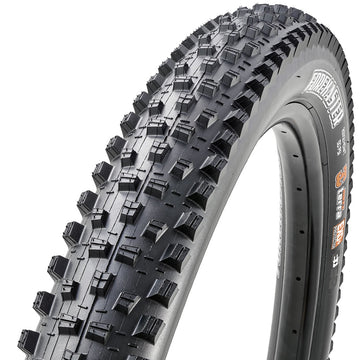

Tires | Maxxis 27.5' Forekaster Cross Country |
General
Total Weight | 61 lb (27.67 kg) |
---|---|
Battery Weight | 10.5 lb (4.76 kg) |
Rated Weight Capacity | 275 lb (124.74 kg) |
Frame | 6061 Aircraft Grade Aluminum |
Accessory Mount | Bottle Cage, Fenders, Rear Rack |
Gravel Ready | Yes |
Walk Assist | Press and Hold |
Customizable | Wide Selection of Accessories |
Geometry & Fit
A. Seat Tube Length | 18" |
---|---|
B. Standover Height | 32 in |
C. Reach | 440 mm |
D. Head Tube Length | 110 mm |
E. Head Tube Angle | 68 degrees |
F. Seat Tube Angle | 73.5 degrees |
G. Wheelbase | 1172 mm |
H. Chainstay Length | 450 mm |
I. Bottom Bracket Height |
308 mm |
J. Seat Stay Length |
444 mm |
FAQ
You can Download and Bookmark the F5 Trail User Manual here.
Your F5 Trail will arrive mostly assembled. The pedals, front tire, seat and handlebars need to be installed. Kickstand is pre-installed.
You can view the F5 Trail Assembly Video here.
Not so sure? When in doubt we recommended contacting your local bike mechanic for help.
Unfortunately, damages resulting from improper assembly are not covered under warranty.
Whether you're trail riding, commuting, grocery getting or anything in between, this package will allow you to get the most out of your Trail.
Kit includes:
- Cargo Rack
- Front and Rear Fenders
- SR Suntour NCX suspension Seatpost (5'7" Min. Height Required)
- Comfort Seat
- Smartphone Mount
- Integrated Headlight and Taillight
How long will my bike take to ship?
In Stock bikes ship on our standard ship 5-10 day ship schedule. Exceptions apply.
ABOUT
Our F5 Trail is built for on or off-road travels, there is no limit to where you can ride! Looking for adventure? This is your bike!
FEATURES:
- 27.5" Maxxis cross country tires
- Magura MT5 4 piston hydraulic disc brakes
- Suspension fork with 130mm of travel
- Optional thumb throttle
